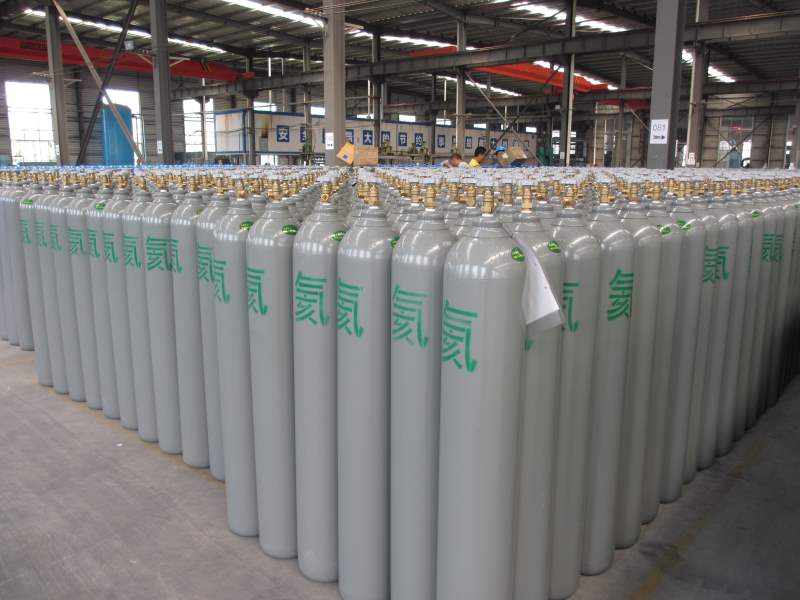

钢制无缝气瓶

气体钢瓶列表

序号 气瓶型号 公称工作压力

MPa

水压试验压力

MPa

水容积

L

气瓶外径mm 瓶体

长度

mm

重量

kg

瓶体材料 执行标准
1 WMA140-4-15 15 22.5 4 140 395 7.4 37Mn GB5099
2 WMA140-5-15 15 22.5 5 140 450 8.2 37Mn
    3 WMA140-6.3-15 15 22.5 6.3 140 540 9.4 37Mn
4 WMA140-8-15 15 22.5 8 140 685 11.4 37Mn
5 WMA140-10-15 15 22.5 10 140 845 13.4 37Mn
6 WMA159-8-15 15 22.5 8 159 545 11 37Mn
7 WMA159-10-15 15 22.5 10 159 675 13 37Mn
8 WMA159-15-15 15 22.5 15 159 955 19 37Mn
9 WMA219-20-15 15 22.5 20 219 720 29 37Mn
10 WMA219-25-15 15 22.5 25 219 870 33 37Mn
11 WMA219-32-15 15 22.5 32 219 1080 40 37Mn
12 WMA219-40-15 15 22.5 40 219 1310 48 37Mn
13 WMA219-50-15 15 22.5 50 219 1600 57 37Mn
11 WGA219-25-20 20 30 25 219 870 36 30CrMo
12 WGA219-32-20 20 30 32 219 1080 43 30CrMo
13 WGA219-40-20 20 30 40 219 1310 52 30CrMo
14 WGA219-50-20 20 30 50 219 1600 63 30CrMo
15 WGA219-20-20 20 30 20 219 720 30 30CrMo
16 WGA204-13.4-20 20 30 13.5 204 585 20.4 34CrMo4 EN1964-1
17 WGA204-20-20 20 30 20 204 815 27.4 34CrMo4
18 WZA232-36-15 15 22.5 36 232 1065 41.6 37Mn GB5099
19 WZA232-40-15 15 22.5 40 232 1170 45.3 37Mn
20 WZA232-46.7-15 15 22.5 46.7 232 1345 51.2 37Mn
21 WZA232-47-15 15 22.5 47 232 1355 51.6 37Mn
22 WZA232-50-15 15 22.5 50 232 1435 54.3 37Mn
23 IWGA232-36-20 20 30 36 232 1065 42.8 34CrMo4 ISO9809-1
24 IWGA232-40-20 20 30 40 232 1170 46.6 34CrMo4
25 IWGA232-46.7-20 20 30 46.7 232 1350 52.7 34CrMo4
26 IWGA232-47-20 20 30 47 232 1360 53.1 34CrMo4
27 IWGA232-50-20 20 30 50 232 1440 55.8 34CrMo4
28 IWMA219-20-15 15 22.5 20 219 720 30 37Mn ISO9809-3
29 IWMA219-25-15 15 22.5 25 219 870 34.5 37Mn
30 IWMA219-30-15 15 22.5 30 219 1020 39.5 37Mn
31 IWMA219-35-15 15 22.5 35 219 1165 43.8 37Mn
32 IWMA219-38-15 15 22.5 38 219 1255 46.5 37Mn
33 IWMA219-40-15 15 22.5 40 219 1315 48.5 37Mn
34 IWMA232-36-15 15 22.5 36 232 1065 41.6 37Mn
35 IWMA232-40-15 15 22.5 40 232 1170 45.3 37Mn
36 IWMA232-46.7-15 15 22.5 46.7 232 1345 51.2 37Mn
37 IWMA232-47-15 15 22.5 47 232 1355 51.6 37Mn
38 IWMA232-50-15 15 22.5 50 232 1435 54.3 37Mn
